Dieses Beispiel

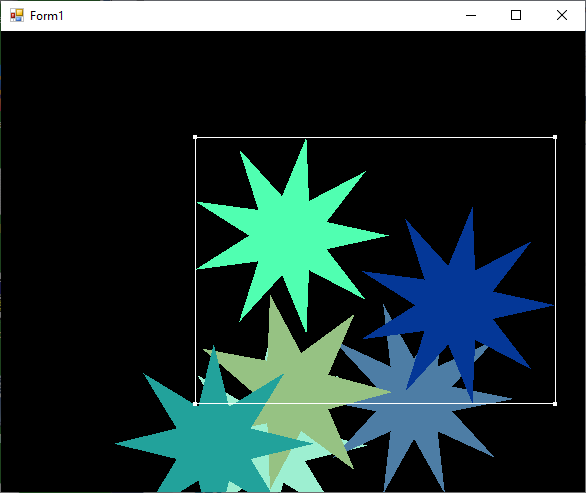

zeigt die Verwendung der Klasse CtrlRectangle. Bei onMouseDown wird ein CtrlRectangle erzeugt mit creating = true, d.h. das Rechteck wird erzeugt. Im MouseUpEvent wird ein neues CtrlRectangle erzeugt, das die Sterne umschließt. Durch Ziehen an den Markerpunkten können die Sterne in ihrer Form verändert werden. Sie werden beim Erzeugen als InsideStars mitgegeben.
using System;
using System.Collections.Generic;
using System.Drawing;
using System.Windows.Forms;
using Drawing3d;
namespace Sample
{
    public partial class Form1 : Form
    {
        MyDevice Device = new MyDevice();
        public Form1()
        {
            InitializeComponent();
            Device.WinControl = this;
        }
    }
    class MyDevice : OpenGlDevice
    {

        const int StarCount = 6;

        public List Stars = new List();
        public CtrlRectangle ControlRect = new CtrlRectangle();
        public CtrlRectangle MarkeredRect = new CtrlRectangle();
        List Colors = new List();
        protected override void onMouseDown(MouseEventArgs e)
        {

            base.onMouseDown(e);
            ControlRect = new CtrlRectangle(this);
            ControlRect.Creating = true;
       }
        protected override void onMouseUp(MouseEventArgs e)
        {
            base.onMouseUp(e);
            if (ControlRect.Device != null)
            {
                ControlRect.OnLogout(false);
                MouseUpEvent();
            }
        }


        private void MouseUpEvent()
        {
            System.Drawing.RectangleF R = ControlRect.Rectangle;
            System.Drawing.RectangleF envRect = new System.Drawing.RectangleF();

            List InsideStars = new List();
            {
                if (ControlRect.A.dist(ControlRect.B) < 0.01) // no moves betweeen Down and Up
                {
                    if ((SnappItems.Count > 0) && (SnappItems[0].Tag is int))
                    {
                        int Index = (int)SnappItems[0].Tag;
                        // Start a Marked rectangle for the rectangle where the pointer is
                        InsideStars.Add(Stars[Index]);
                    //    MarkeredRect.ShowMarked(this, Stars[Index].GetMaxrect(Matrix.identity), InsideStars);
                        return;
                    }
                }

                else
                { // Rectangle no empty .. Moves between down and up
                    for (int i = 0; i < Stars.Count; i++)
                    {
                        System.Drawing.RectangleF RF = Stars[i].GetMaxrect(Matrix.identity);
                        if (R.Contains(RF))
                        {
                            InsideStars.Add(Stars[i]);
                            envRect = Utils.Union(envRect, RF);
                        }
                    }
                    if (envRect.Size.Width > 0)
                    {
                        MarkeredRect = new CtrlRectangle(this, envRect, InsideStars);
                        MarkeredRect.Creating = false;
                    }
                }

            }
        }

        public override void OnPaint()
        {

            Color C = Emission;
            for (int i = 0; i < StarCount; i++)
            {
                Emission = Colors[i];
                PushTag(i);
                drawPolyLine(Stars[i]);
                PopTag();
            }
            Emission = C;

            base.OnPaint();


        }
        Random R = new Random(Guid.NewGuid().GetHashCode());
        double getRandom()
        {
            double a = R.NextDouble();

            return (a - 0.5) * 20;
        }
        protected override void OnCreated()
        {
            base.OnCreated();
            Navigating = false;
            MarkeredRect.LiveTransform = true;
            MarkeredRect.Creating = false;
            for (int i = 0; i < StarCount; i++)
            {

                xyArray Star = xyArray.CreateStar(new xy(getRandom(), getRandom()), 6 + (int)(R.NextDouble() * 6), 2, 5);
                Stars.Add(Star);
                byte[] CO = new byte[3];
                R.NextBytes(CO);
                Colors.Add(Color.FromArgb(255,CO[0], CO[1], CO[2]));
            }


            LightEnabled = false;
        }
    }
}
